Article features

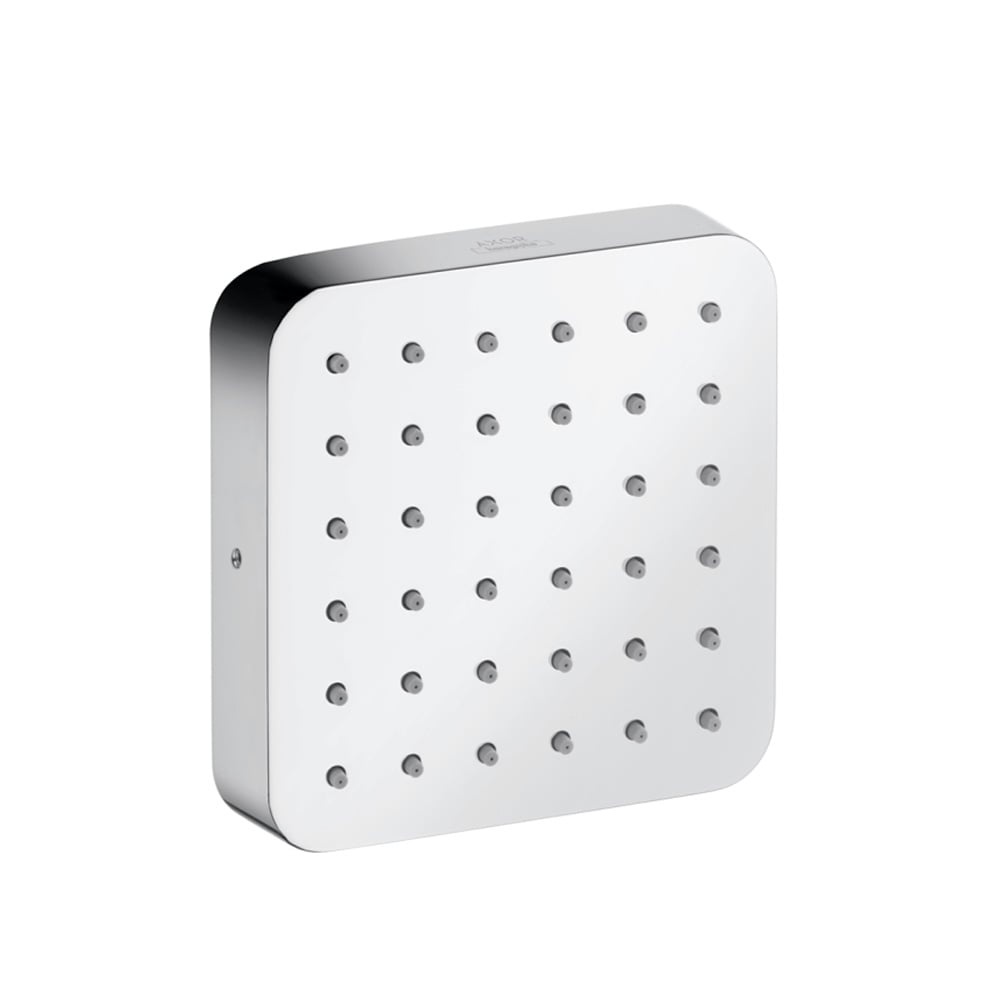

• shower head size: 120 mm
• spray type: Rain
• spray angle adjustable in five steps
• functions as overhead, shoulder or side shower
• maximum flow rate at 3 bar: 5,3 l/min
• minimum flow pressure: 1 bar
• operating pressure: min. 1 bar/max. 6 bar
• connection thread: G ½
• in a joined installation (10 mm distance), the basic set no.28486180 must be used
• in a freely arranged installation, connection via a G ½ connecting thread is possible
• if installed as an overhead shower with several joint modules, the use of installation aid no.28470180 is recommended
• suitable for continous flow water heaters
• connection dimension: DN15
• material: metal
• EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
• flow rate Rain spray at 3 bar: 5,3 l/min
